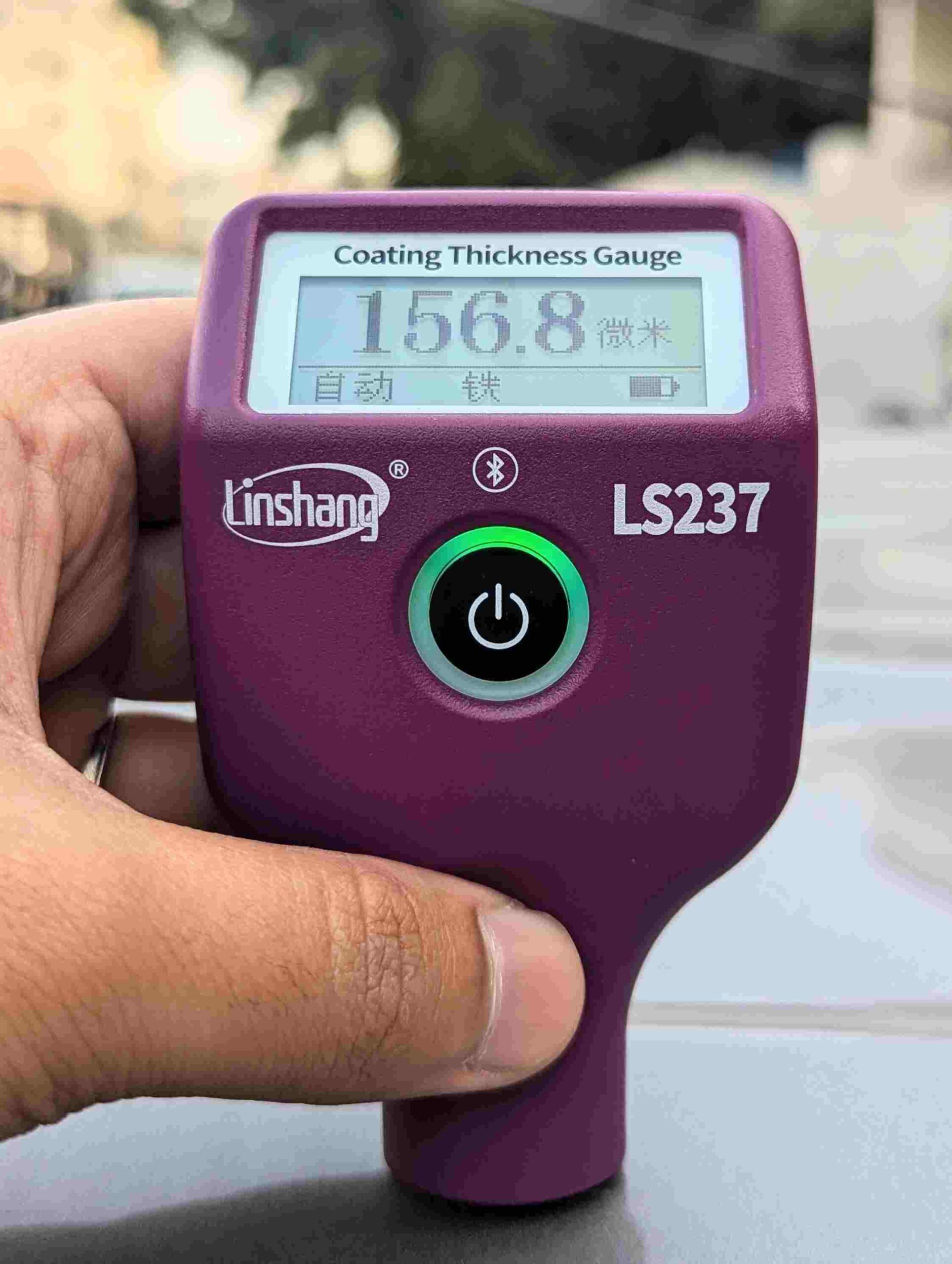

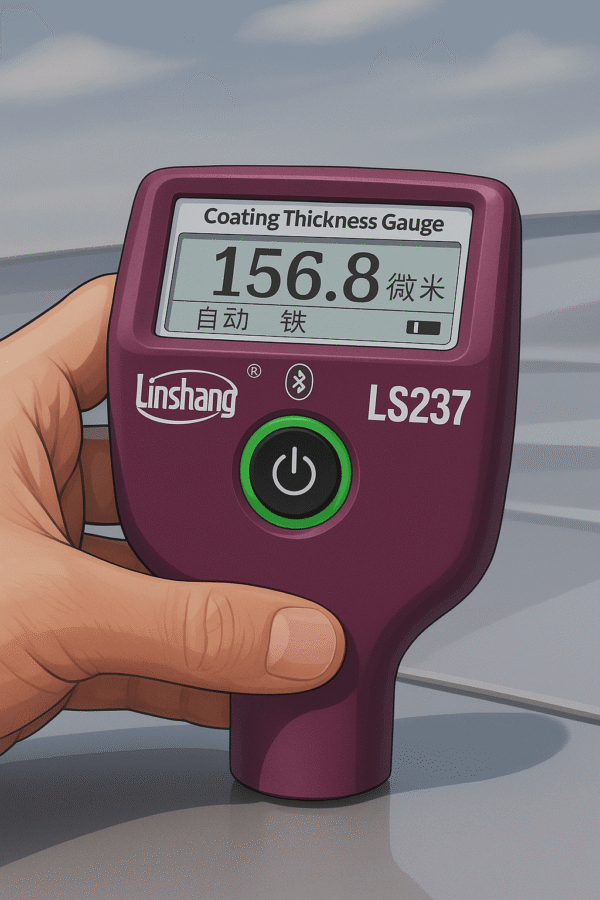

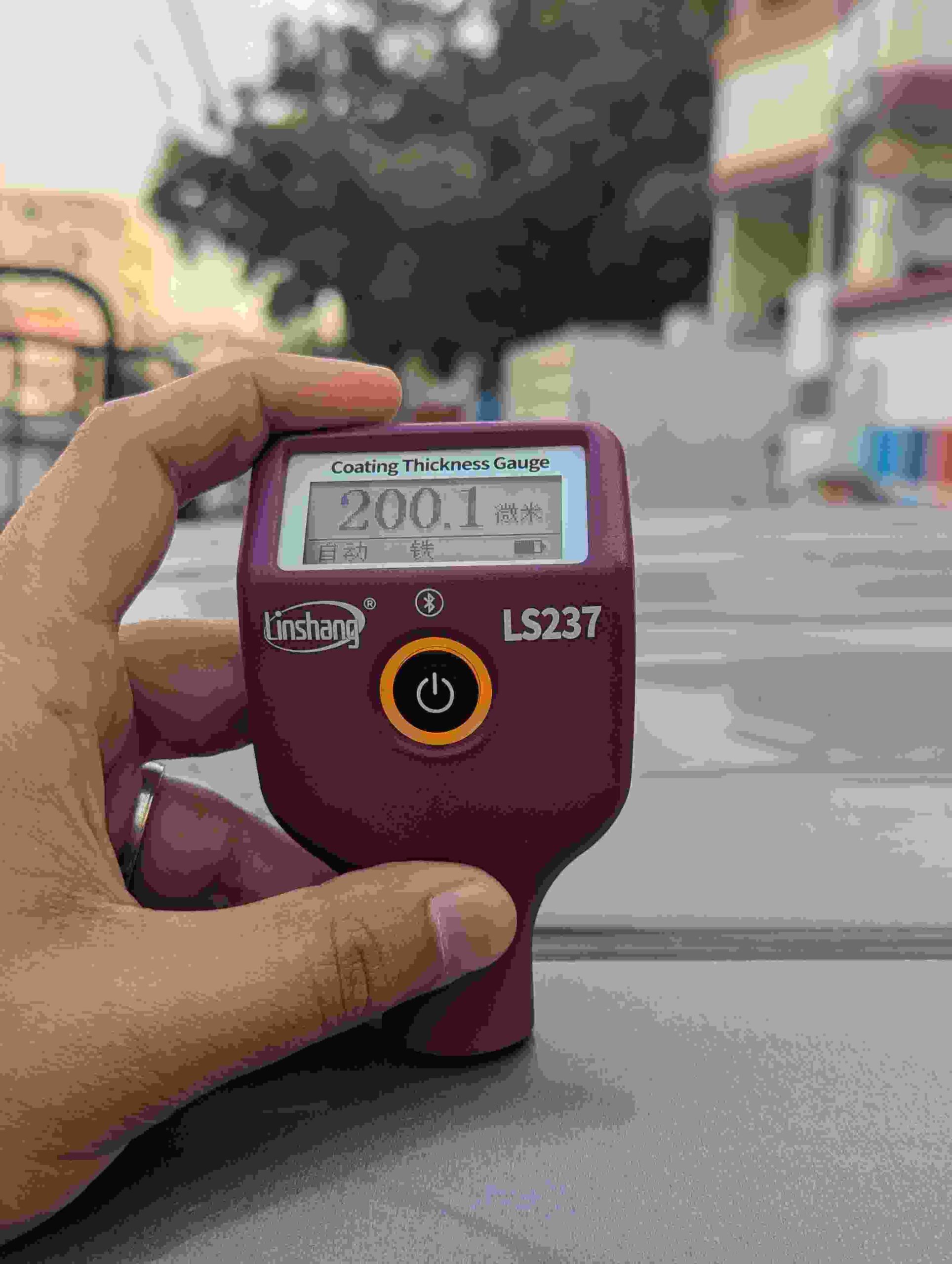

Linshang LS237 – Paint Testing and Thickness Coating Gauge

Linshang LS237 – Paint Testing and Thickness Coating Gauge

Chat Now
WhatsApp Chat
Send us a message today and we will contact you as soon as possible.

Description

Key Features:

  • Three-Color Rotatable Display: Easily read measurements with the rotatable screen and three-color backlight. The display changes color (white, yellow, red) to indicate different paint thickness levels, ensuring quick and intuitive readings.

  • Advanced Paint Detection: The LS237 can detect ferrous putty and galvanized layers, making it an indispensable tool for identifying potential repaints or repairs. It identifies substrates like iron, aluminum, galvanized iron, and non-metallic surfaces.

  • Bluetooth Connectivity & Mobile App Support: Generate detailed car inspection reports directly from your smartphone using the companion app. With Bluetooth data transfer, sharing and saving reports has never been easier.

  • Ultra-Low Power Consumption: With its rechargeable lithium battery, the LS237 offers over 50 hours of continuous use on a single charge. The Type-C charging port makes recharging simple and efficient.

  • Fast and Accurate Measurement: With a rapid response time of just 0.5 seconds, this meter ensures efficient inspections without compromising accuracy. It also features a digital probe that enhances precision and repeatability.

  • Multi-Language Support: The device can be switched between six languages, making it ideal for use across different regions and industries.

  • Durable & Long-Lasting: Equipped with a ruby probe, the LS237 is highly resistant to wear, extending the lifespan of the tool and ensuring long-term accuracy.

Perfect for Professionals & DIY Enthusiasts:
Whether you’re a professional mechanic, auto-body shop owner, or simply a car enthusiast who wants to ensure their vehicle’s original paint integrity, the LS237 is a versatile and reliable solution for paint thickness inspection.

Product Specifications:

  • Measurement Range: 0.0 – 5000 μm

  • Accuracy: ≤±(3%H + 2μm)

  • Display: 128×48 dot matrix LCD

  • Power: Rechargeable lithium battery (1200mAh)

  • Operating Temp: -20°C to 50°C



Probe tip Ruby
Measurement principle Fe: Hall effect / Al: Eddy current
Probe type Integrated
Measuring range 0.0-5000μm
Resolution 0.1μm/1μm/10μm
Accuracy 0-3000μm: ≤±(3%H+2μm), H is the standard value
3000-5000μm: ≤±(5%H+2μm), H is the standard value
Unit μm / mil
Measuring interval 0.5s
Minimum measuring area Ø = 25mm
Minimum radius of curvature Convex: 5mm / Concave: 25mm
Minimum substrate thickness Fe:0.2mm / Al:0.05mm
Display 128×48 dot matrix LCD
Power supply Rechargeable lithium battery 3.7V@1200mAh
Range of working temperature -20℃-50℃
Storage temperature range -20℃-60℃
Host size 101*62*28 mm
Weight (including battery) 76g
Data transfer Bluetooth
